DISTRIBUTION TRANSFORMER TEST LABORATORY

Laboratory Overview

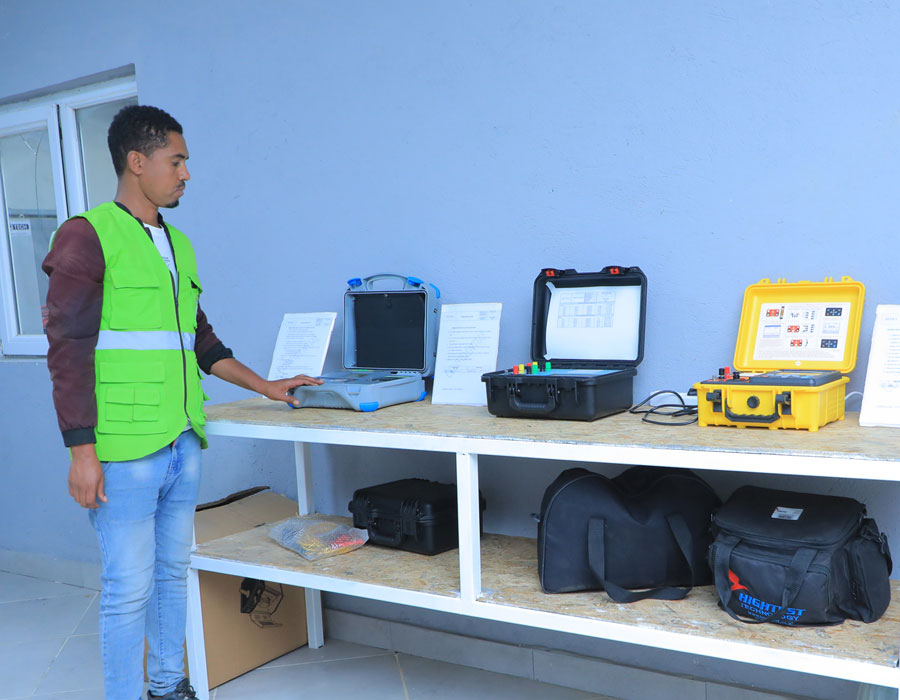

Our Oil-Immersed Transformer Test Laboratory (12m × 6m) is equipped to perform routine, type, and special tests in full compliance with:

  • International Standards: IEC 60076-1, IEC 60076-3
  • Regional Specifications: EEU technical requirements
  • Custom Protocols: Client-specific testing criteria

Grounding System:

  • Low-impedance grounding (<0.5 Ω) achieved via interconnected rod arrays beneath the test floor, ensuring safety and accuracy.

Routine Testing Capabilities

Every DENKA transformer undergoes exhaustive verification, including:

  1. Winding Resistance Measurement *(IEC 60076-1, Clause 11.2)*

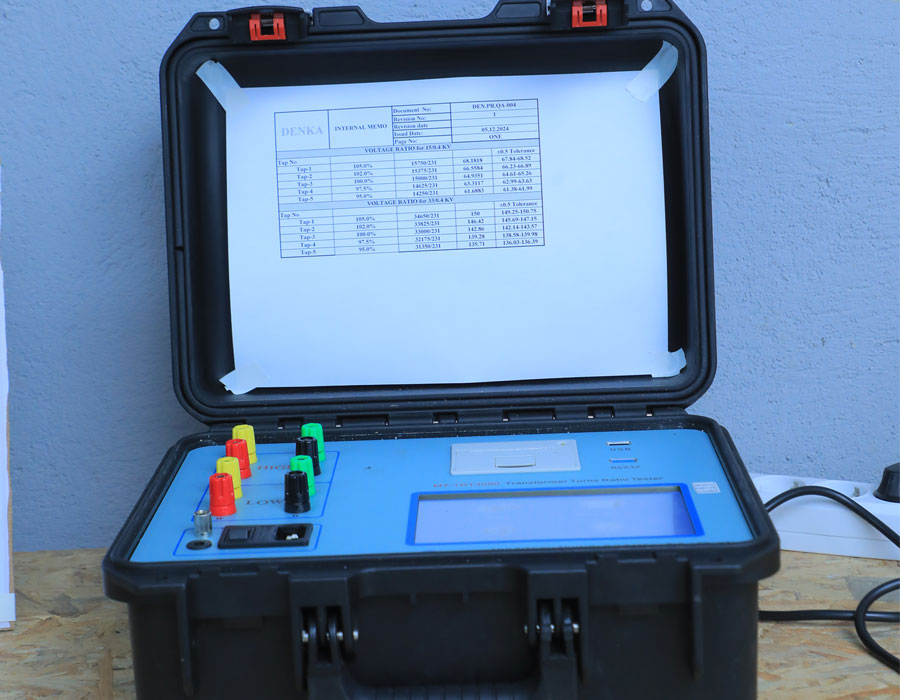

  2. Voltage Ratio & Phase Displacement Check *(IEC 60076-1, Clause 11.3)*
  3. No-Load Loss & Current Measurement *(IEC 60076-1, Clause 11.4)*
  4. Short-Circuit Impedance & Load Loss Test *(IEC 60076-1, Clause 11.5)*
  5. Applied Voltage Test (AV) *(IEC 60076-3, Clause 10)*
  6. Induced Voltage Withstand Test (IVW) *(IEC 60076-3, Clause 11.2)*
  7. On-Load Tap-Changer Operation Test *(IEC 60076-1, Clause 11.7)*
  8. CT Polarity & Ratio Verification *(IEC 60076-1, Clause 11.1.2.1)*

Why Trust DENKA’s Testing?

Zero Compromise

100% of units tested before delivery.

Traceability

Digitally archived test reports for every transformer.

Future-Ready

Lab upgradable for emerging standards (e.g., renewables integration).

Why DENKA Transformers?

  • Compliance & Reliability: Manufactured to IEC 60076-1 and EEU standards, with optional customization to meet contract-specific demands.
  • Versatility: Available in single-phase or three-phase configurations for diverse industrial, commercial, and renewable energy applications.
  • Safety-Centric Design: Built-in protection features (e.g., overload relays, temperature monitoring) ensure operational safety and longevity.

Our Commitment

Every DENKA transformer is engineered to:

  • Deliver peak energy efficiency and reduced lifecycle costs.
  • Support grid stability and renewable energy integration.
  • Exceed customer expectations through rigorous quality control and post-sales support.
